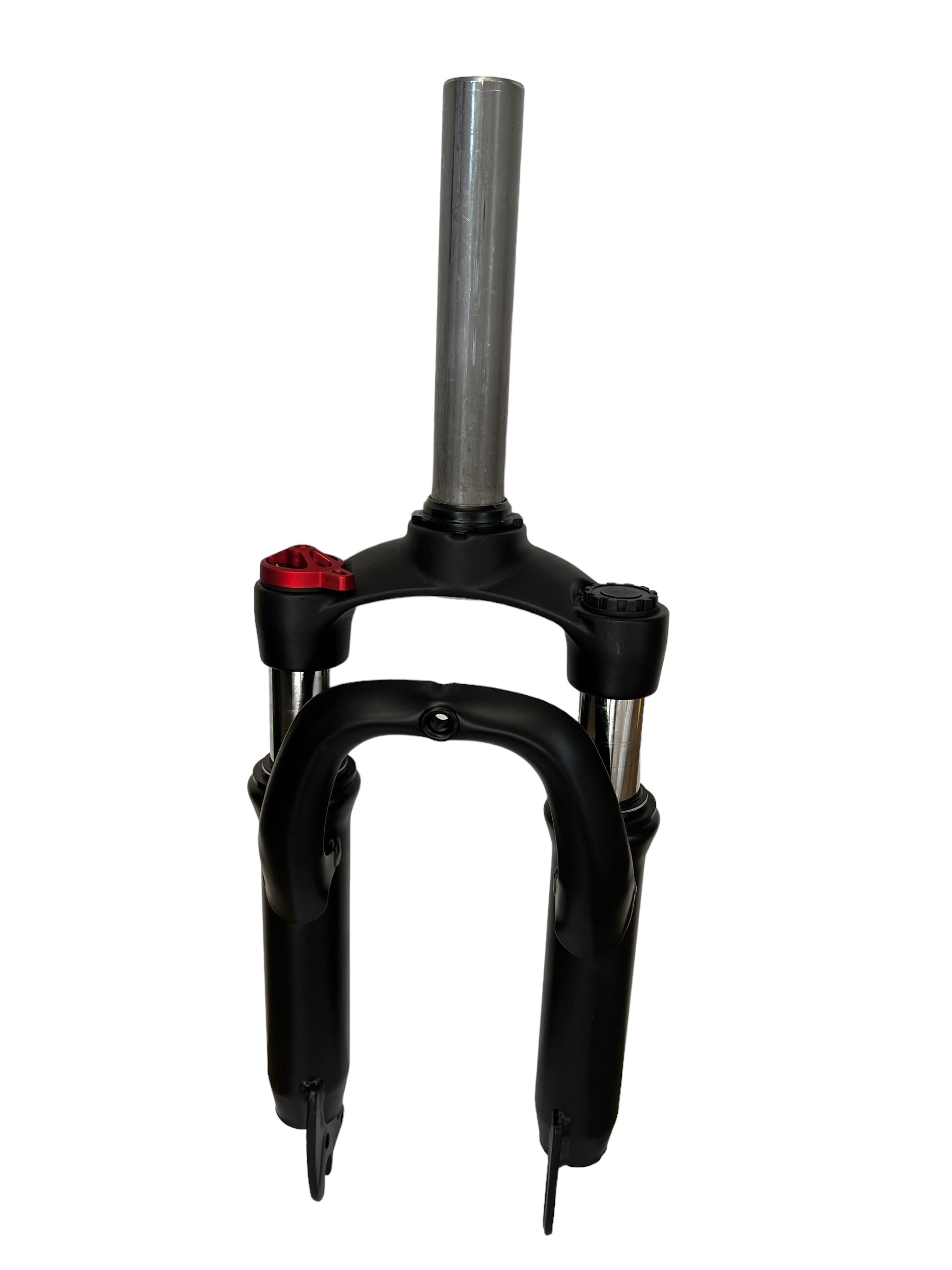

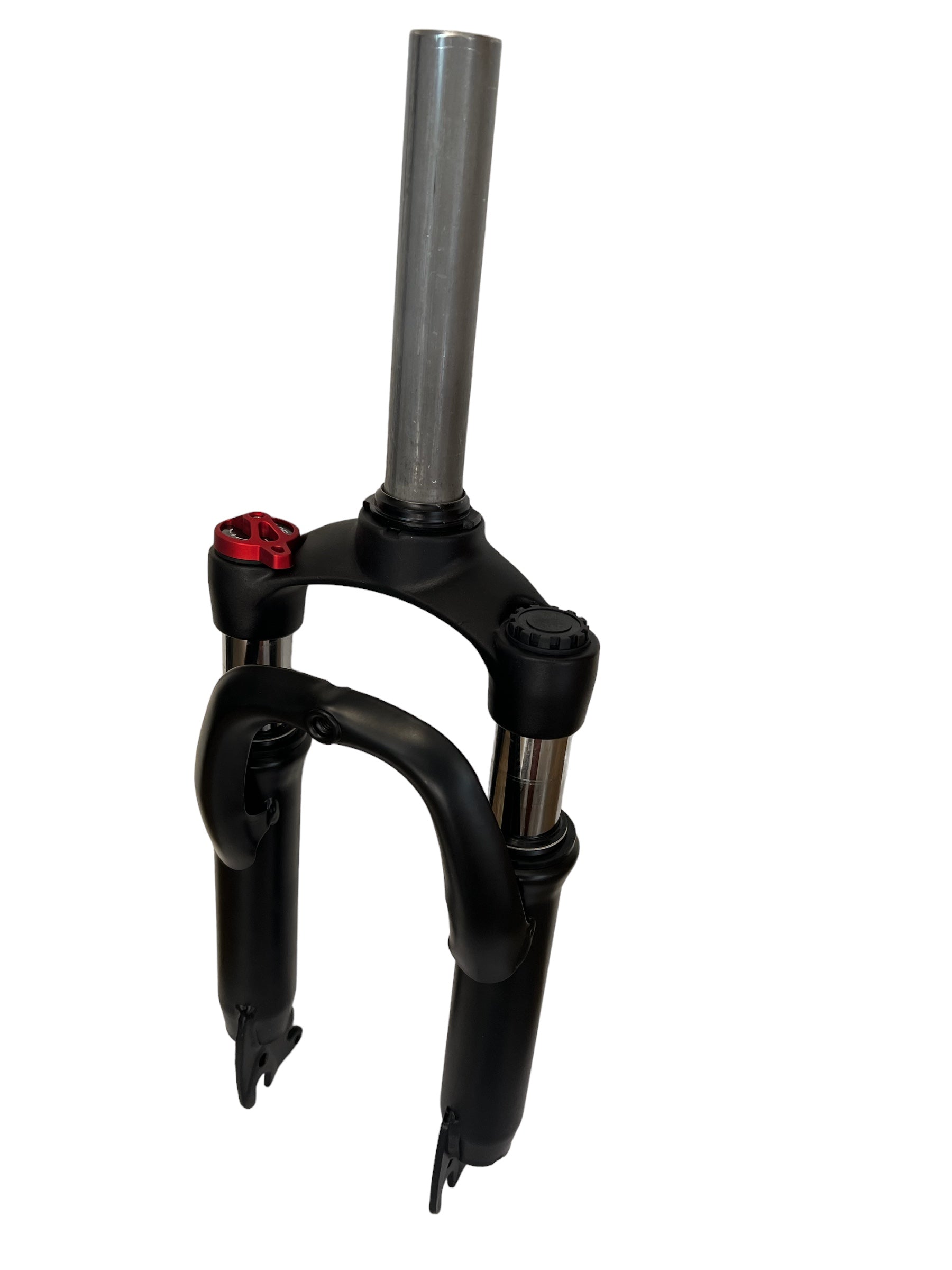

16” Adjustable Suspension Forks

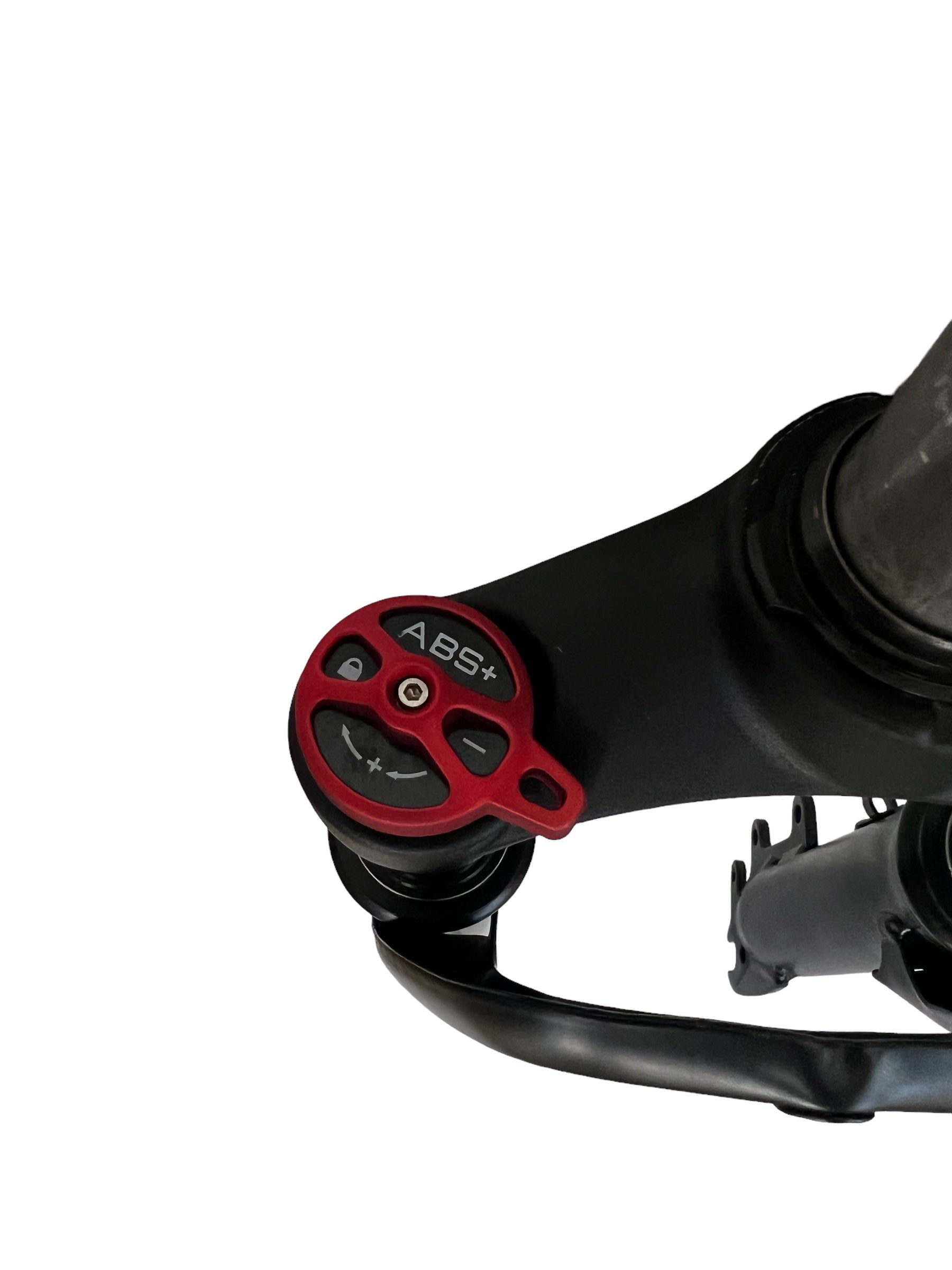

16” Suspension Forks with Quick Adjustable Compression Dial.

SPRING SPECS:

• Stock Spring = 3.5mm
• Hard/Intermediate Spring = 3.0mm (+$7.00)
• Soft/Intermediate Spring = 2.8mm (Coming Soon)
• Soft = 2.5mm (Requires Spacer - Recommended 5/8")

Fits:

• XRT 16” Sport
• XRT 16” Pro
• PUR-SPEED 16S
• PUR-SPEED 16 XTREME
• Orion RXB eForce 16 (2023)
• Thumpstar TSE 16
• Stacyc 16" (10mm Spacer) +3.00

Spring Rate Descriptions:

Stock spring too stiff? We now have stocked a softer replacement spring for our 16” Adjustable Suspension Forks.

Only 1 Spring Required per set of forks.

Only For the Adjustable suspension forks.

Stock 3.5mm

• Stock spring is on the stiff side. Our test rider didn't notice much of an improvement with overall feeling on small bumps, mild track riding, and jumps however you could see the clean spots on tubes from the fork traveling so we know they were working on harder impacts.

Hard/Intermediate 3.0:

• Improvement from stock.

• Ideal for older/heavier riders.

• Hard landings and Big Air

• Our test rider was able to notice an improvement with felling in the same small bumps, mild track riding, and jumps scenario. More Travel was visible on the fork tubes after riding.

Soft/Intermediate 2.8:

• On order and waiting to be tested.

Soft 2.5:

• Ideal for younger/lighter riders.

• Grass riding/Little Bumps

• Recommended to use 5/8" Spacer/Washer

• With 5/8" Spacer this will ride similar to motocross fork, meaning once our test rider was on the bike the suspension compressed about 15% and did not fully rebound until dismounted. This provided a great ride in light/mild terrain. Any large jumps will bottom these out.

TEST RIDER WEIGHT: 48LBS

 *Modifications to bikes are subject to void any or all manufacture warranties.

**All children should always wear a helmet and safety pads when operating any electric bike. Always use caution when riding and advancing through speed setting. Injury or even death may occur.
