16S VESC Based Controller Kit for Stacyc by INDY SPEED CONTROL

LAST RUN AS WE MUST SELL DUE TO DEALER AGREEMENT WITH STACYC.

16S VESC Controller for Stacyc by INDY SPEED CONTROL

Tired of expensive controller replacements or want more opportunity for modifications. Look no further as the options are pretty much limitless using this controller. You can change the motor, increase the battery voltage, add a dashboard display pretty much if you can think it you can do it.

This kit will include:

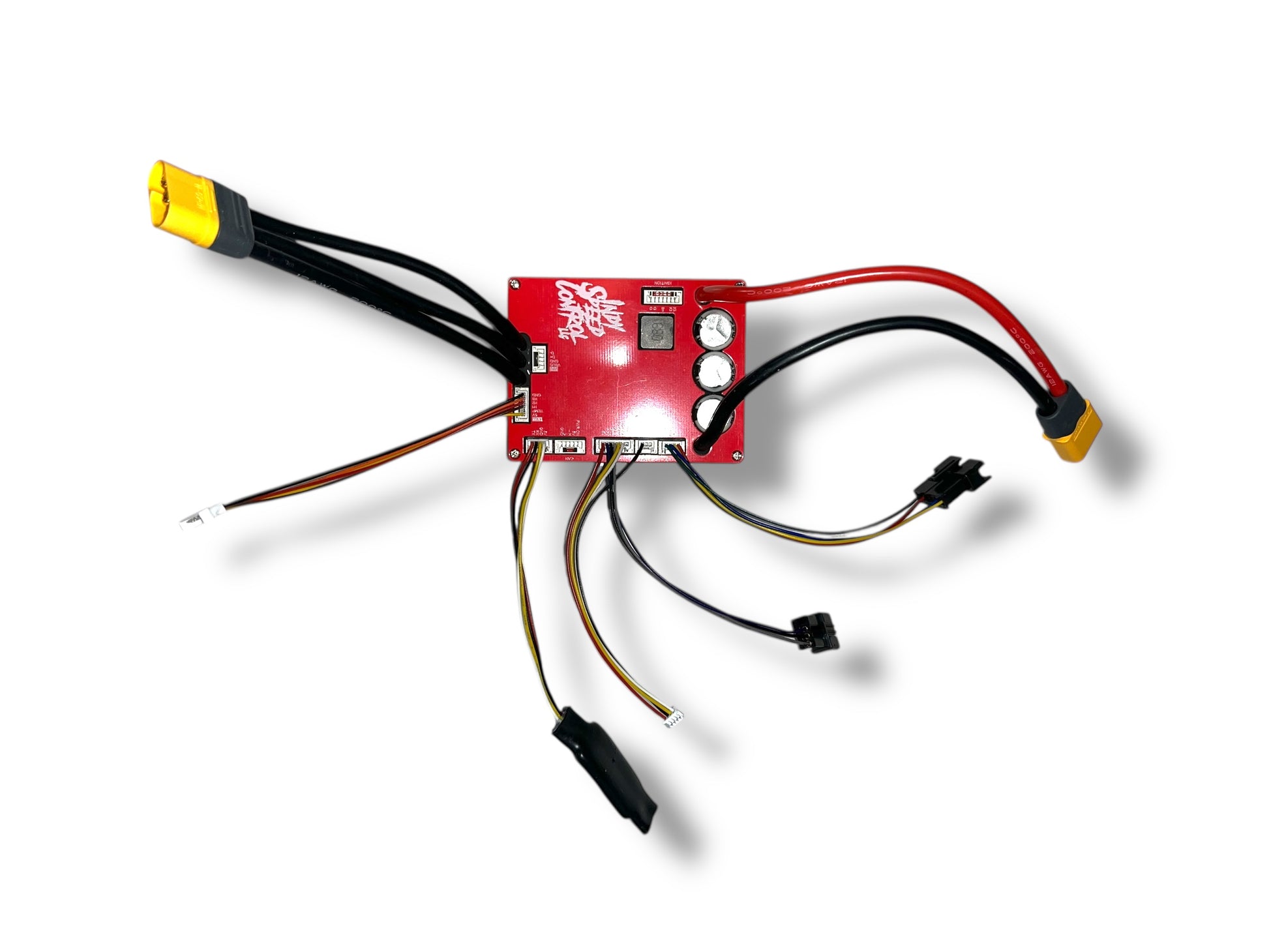

• VESC based controller
• Bluetooth Module
• 16S wire harness compatibility kit

You will need to be able to solder a few wires but the kit is as plug and play as possible.

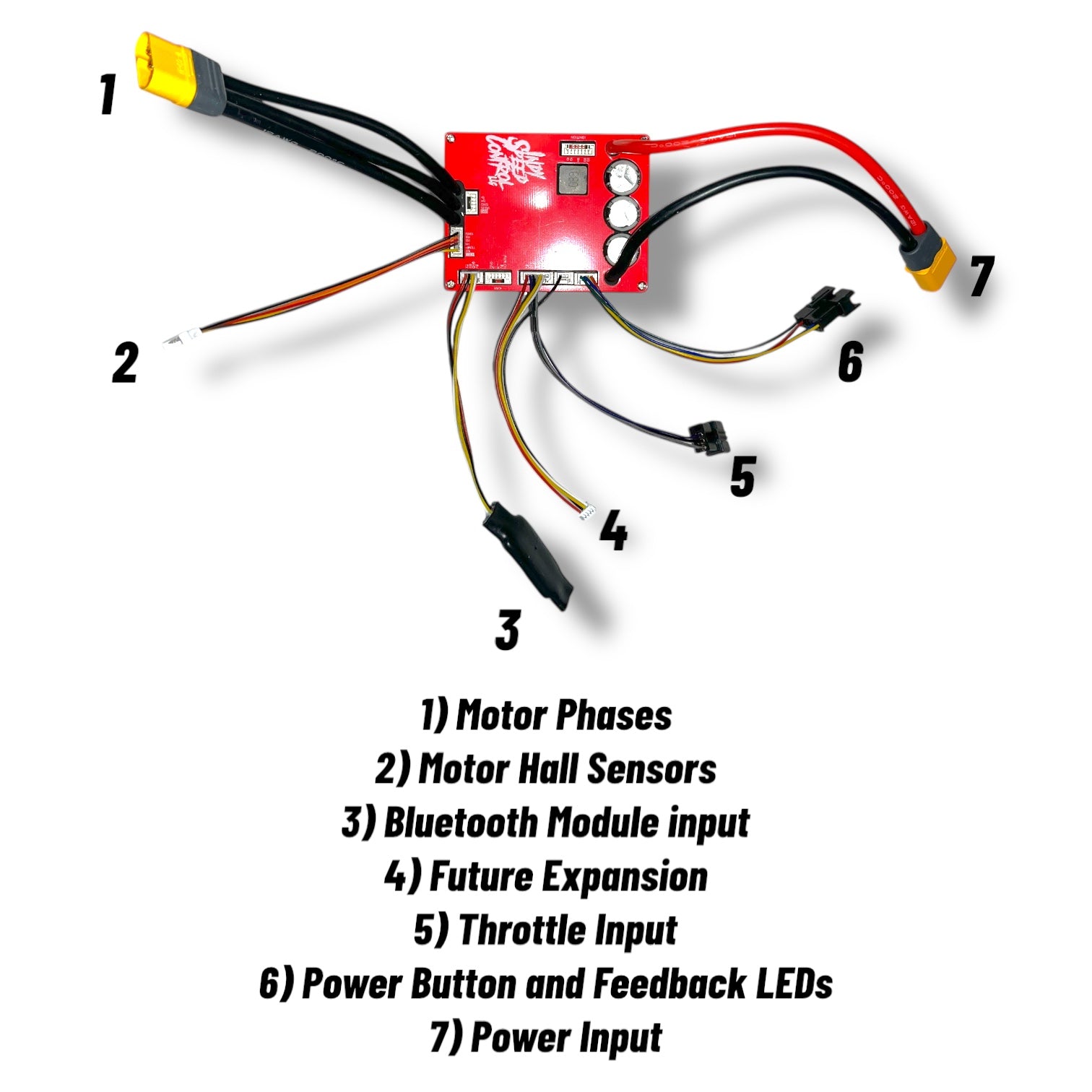

Controller Key:

1. Motor Phases
2. Motor Hall Sensors
3. Bluetooth Module input
4. Future Expansion
5. Throttle Input
6. Power Button and Feedback LEDs
7. Power Input

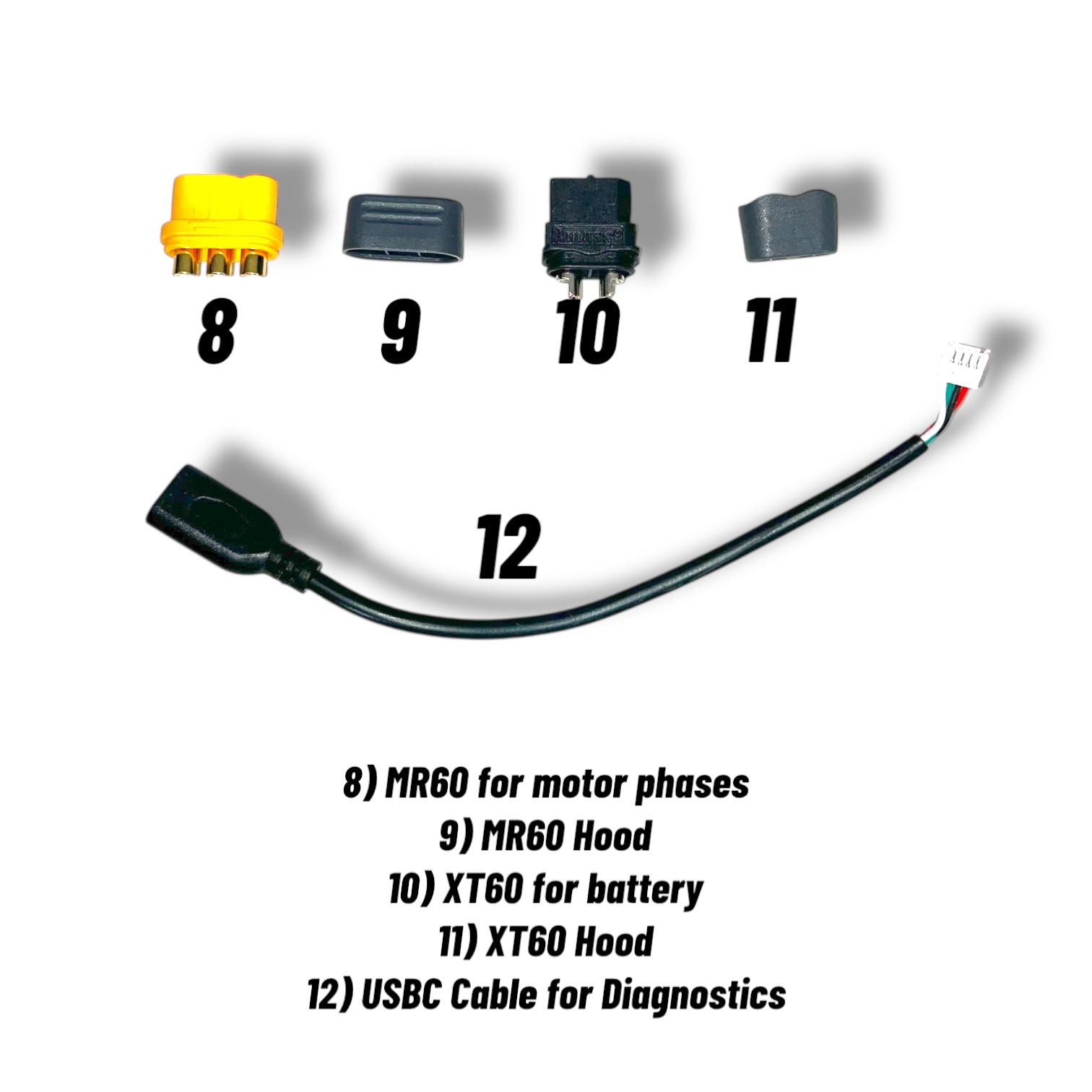

8. MR60 for motor phases
9. MR60 Hood
10. XT60 for battery
11. XT60 Hood
12. USBC Cable for diagnostics



Here is a video of basic install and programming but there are many more features:

YouTube Instructions: CLICK HERE

Firmware : compatible with vesc official firmware (Firmware Name in vesc tool: UBOX_SINGLE_100)

Voltage: 22S max （Firmware limit max voltage 96v）

Current: 100A max (The duration depends on the temperature around the product, heat dissipation and air circulation）

Ports available: PPM,UART(adc1/adc2),Canbus,Hall sensor,TypeC USB, NRF port, Ignite Key port, Power button port

Cables and connectors: 10cm length(out of the alum case) 12AWG phase wires with 4.0mm female bullet connector, 10cm(out length) 12AWG battery cable with XT90 male connector

Size: 58*75*22mm

Added 3.3v/5v/ignite key port fuse protection

Power button LED lights functional indication:

Normal--Solid green light

Abnormal--Blinking Red
