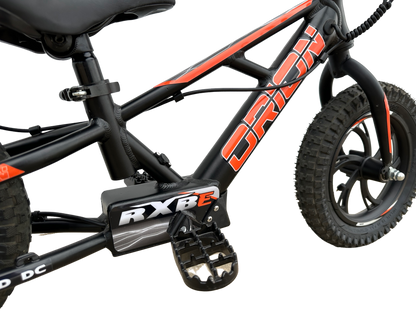

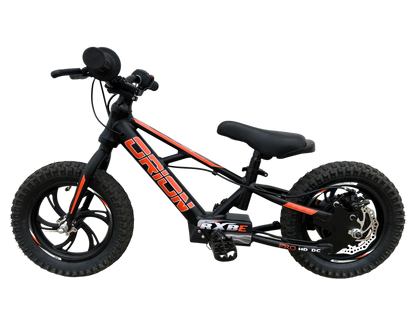

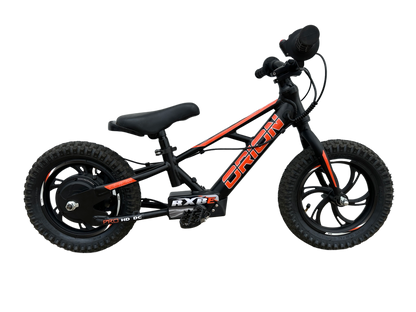

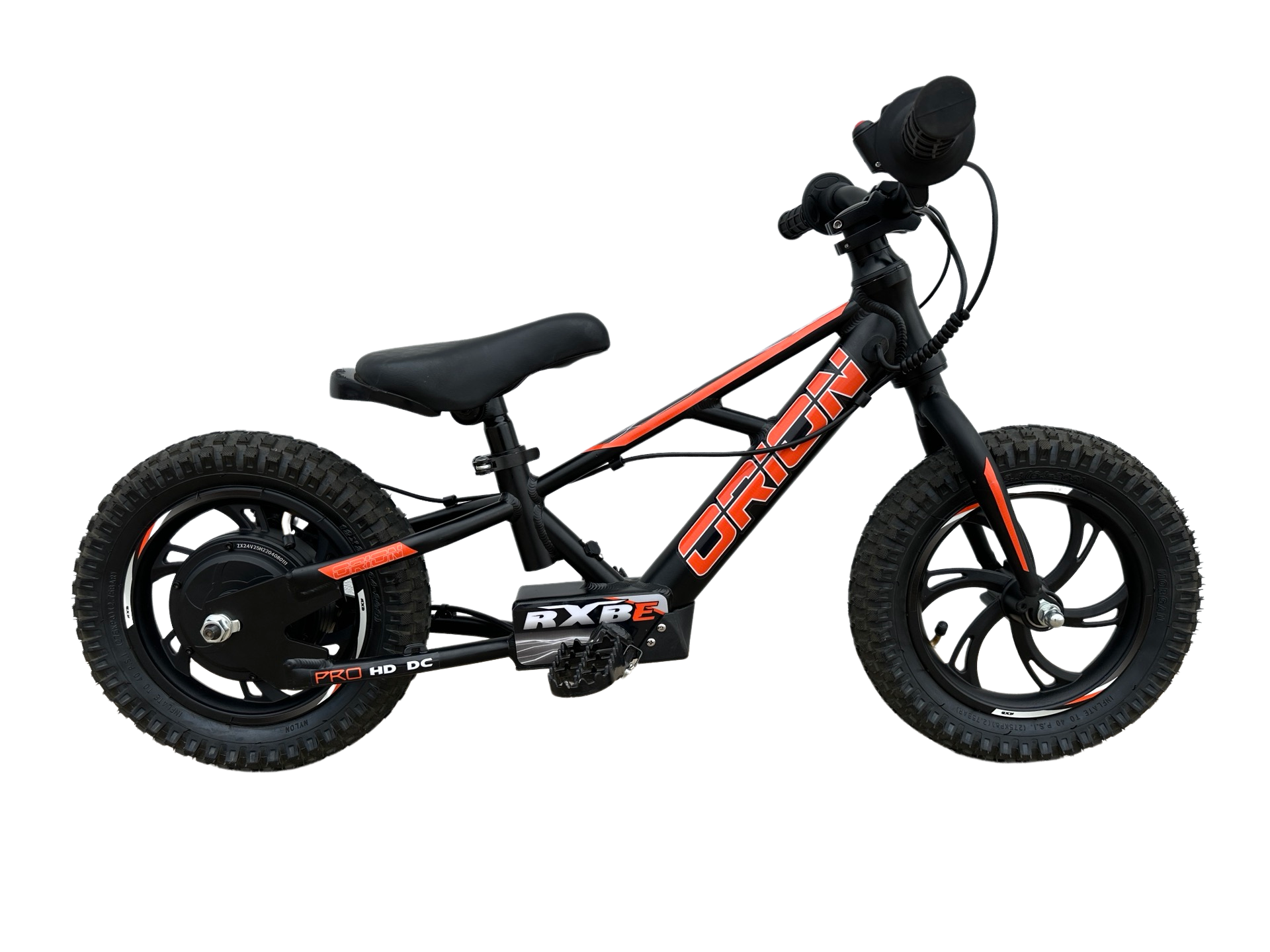

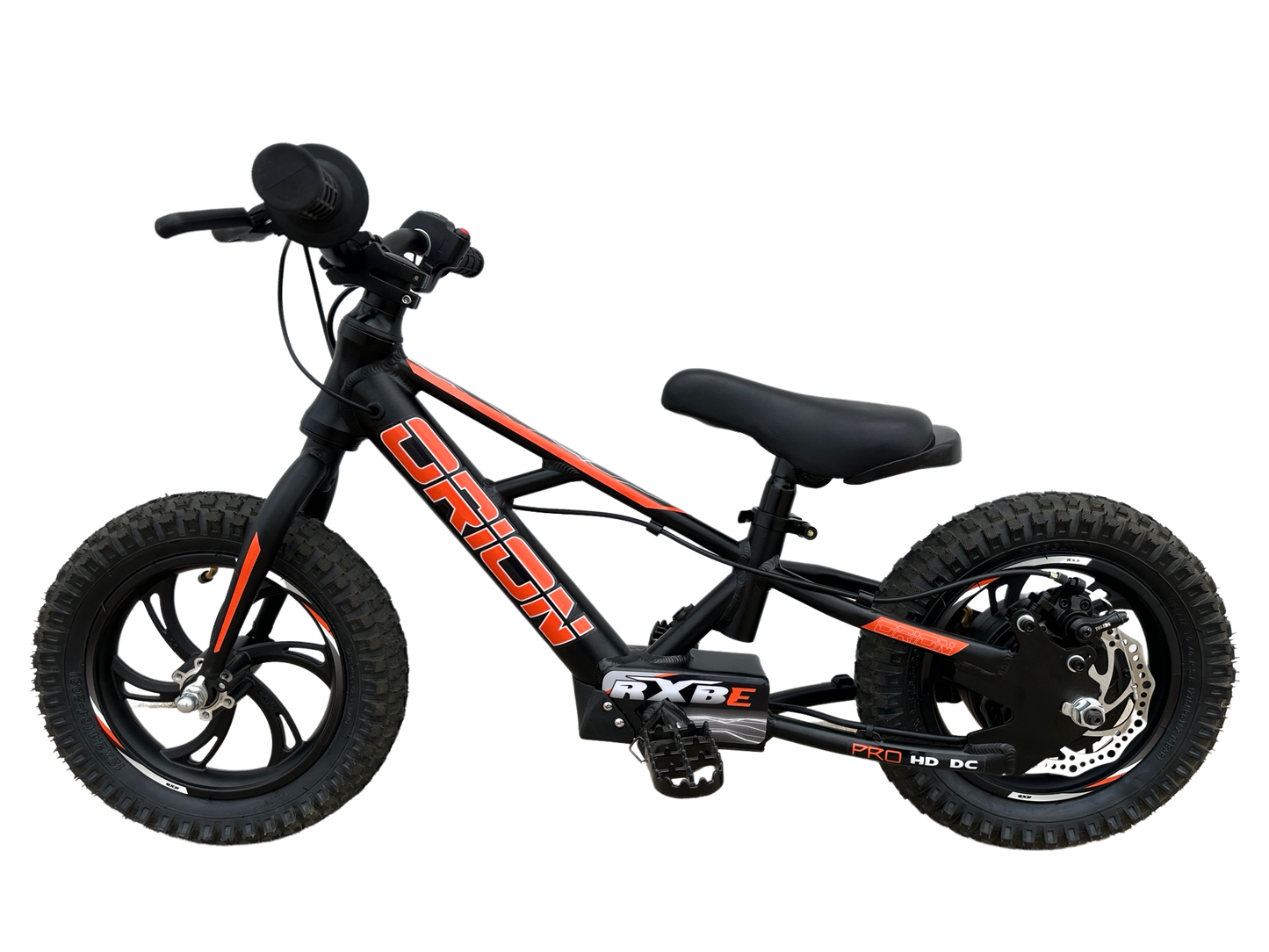

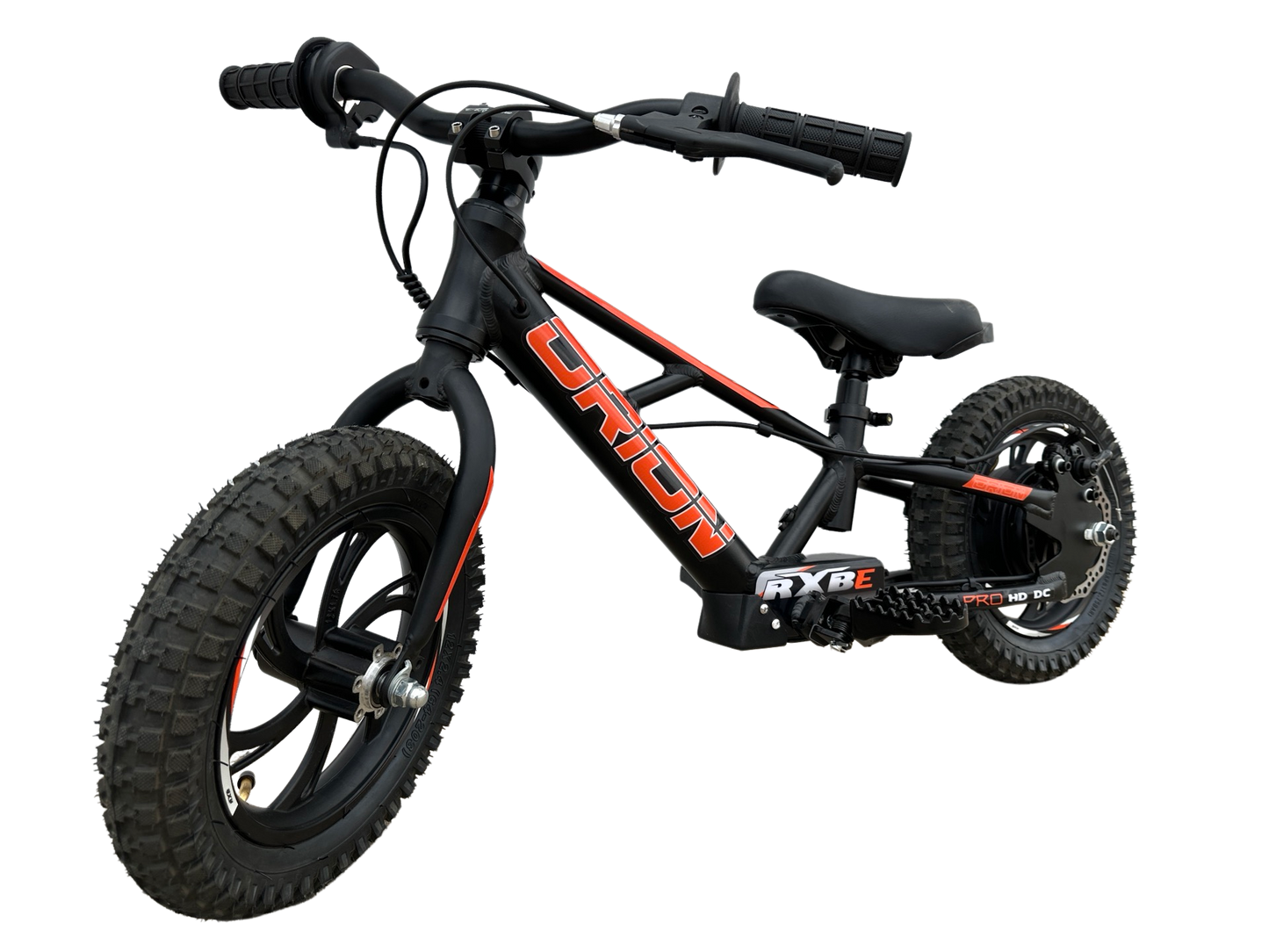

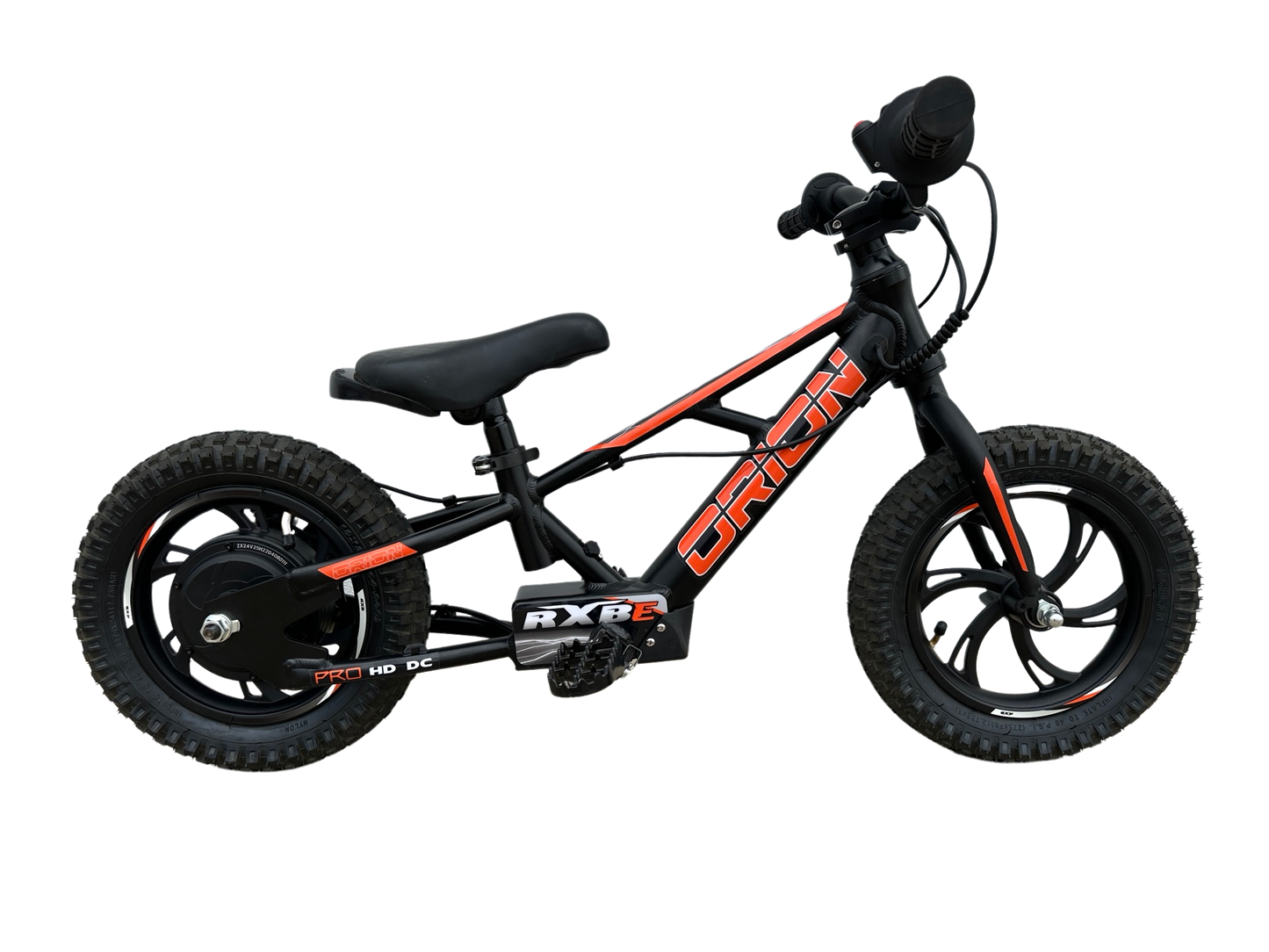

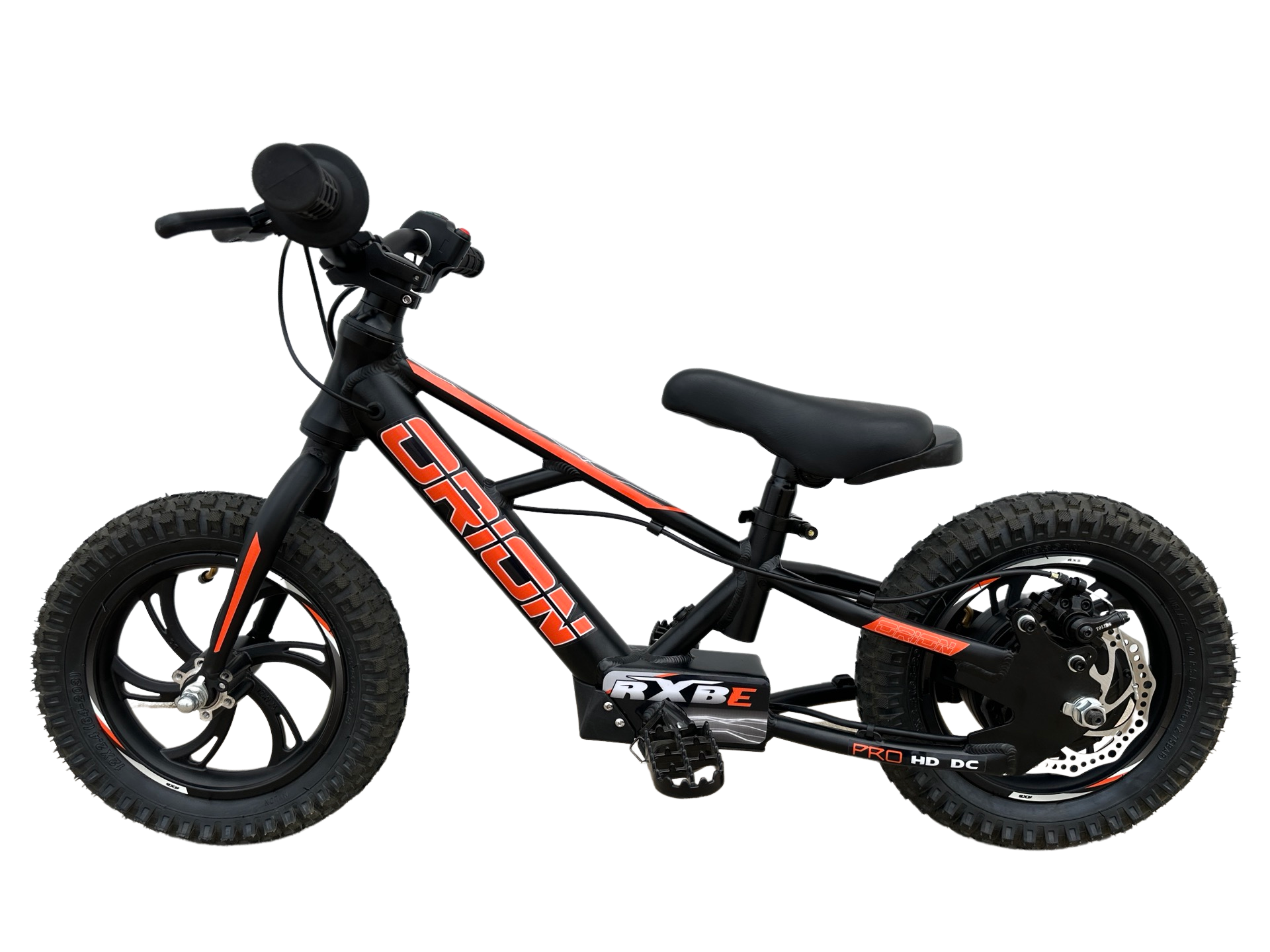

2023 Orion RXB eForce 12" 250W - DISCONTINUED

CONTROL

Speed limits (6 settings)

Parental controls

Disk brake with power cut

6 larger, 20AMP MOSFET transistors

SAFETY

Kick start Mode

TDR (Throttle Delay Reaction)

BCO (Brake switch Cut Out)

QUALITY

Battery life (2-3 Hours - Double Competition)

Refined Throttle Control

Gravity Centered, Adjustable Seat

MODES: KSM, 50% power, Race (100% power, 3rd speed, 20 AMP’s)

MAKE IT RACE READY

Turn off power cut

Add footpegs

Higher top speeds

Item No. XRT Lil' MO

Motor power: 180W

Motor Type: Geared

Battery: Li 24V  5.2Ah

Charger: High Quality

Controller: 20A

Wheel size: 12"

Wheel Type: Aluminum

Tire: Quality Knobby

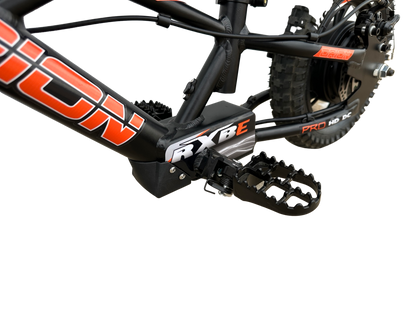

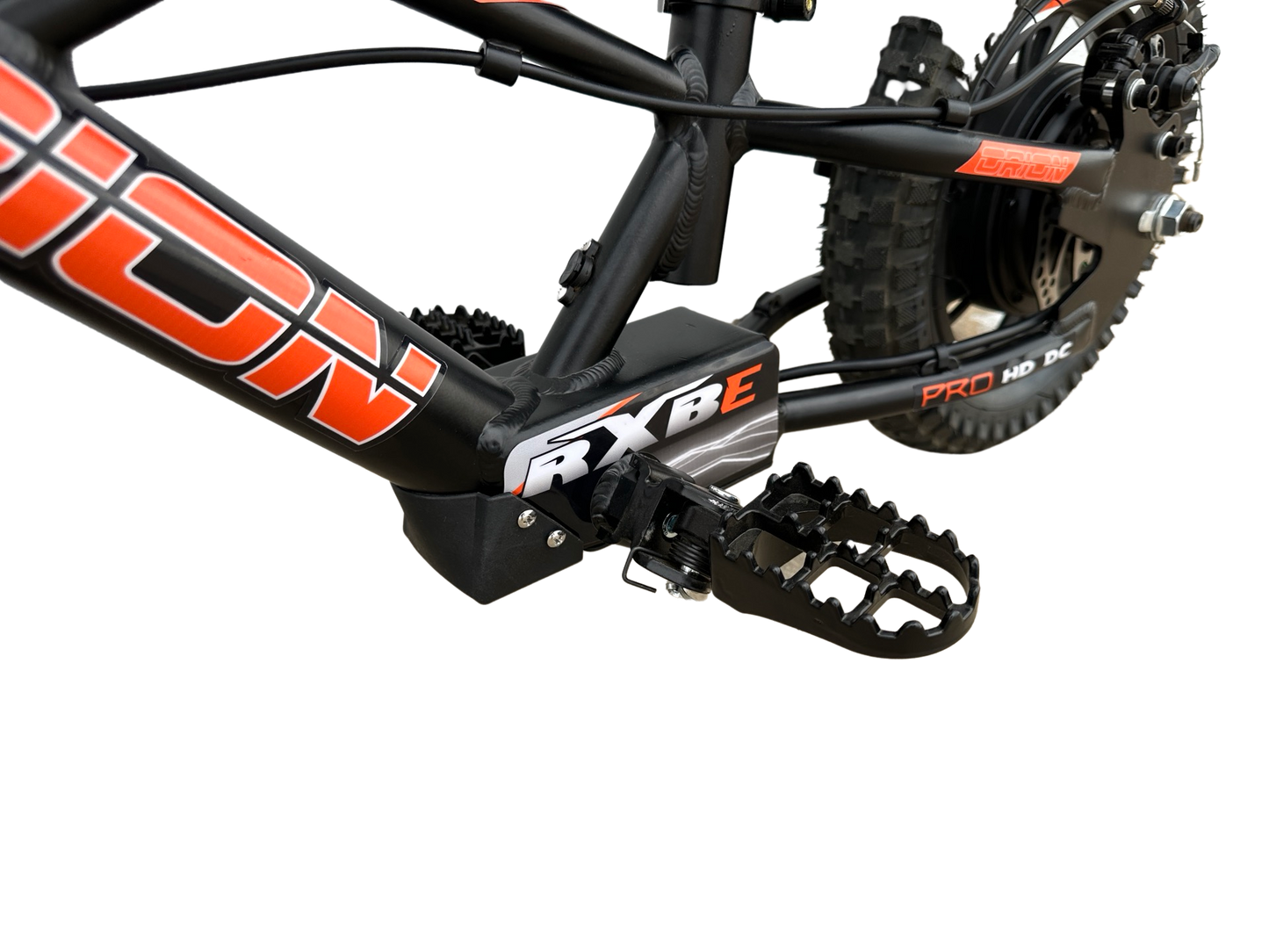

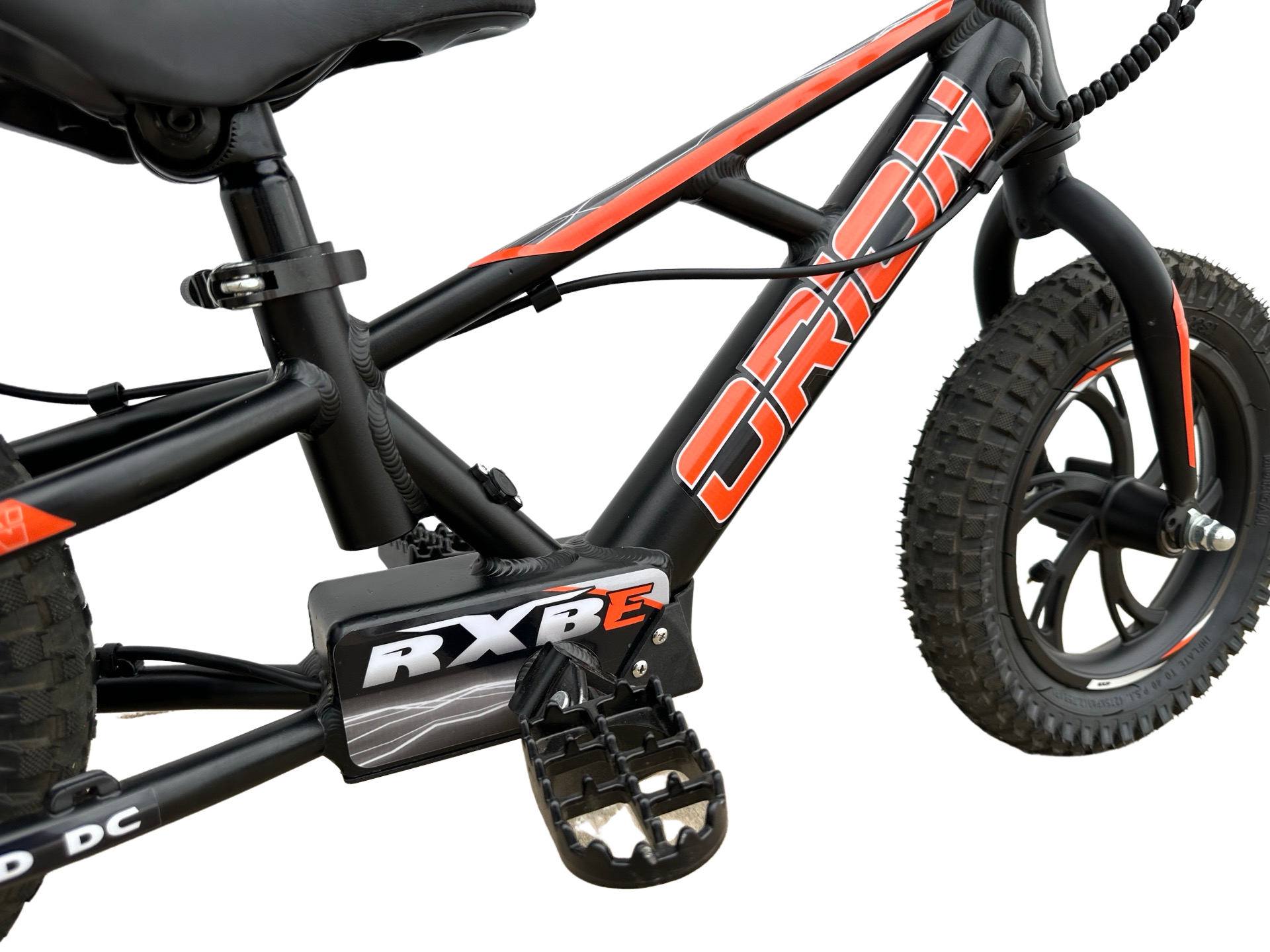

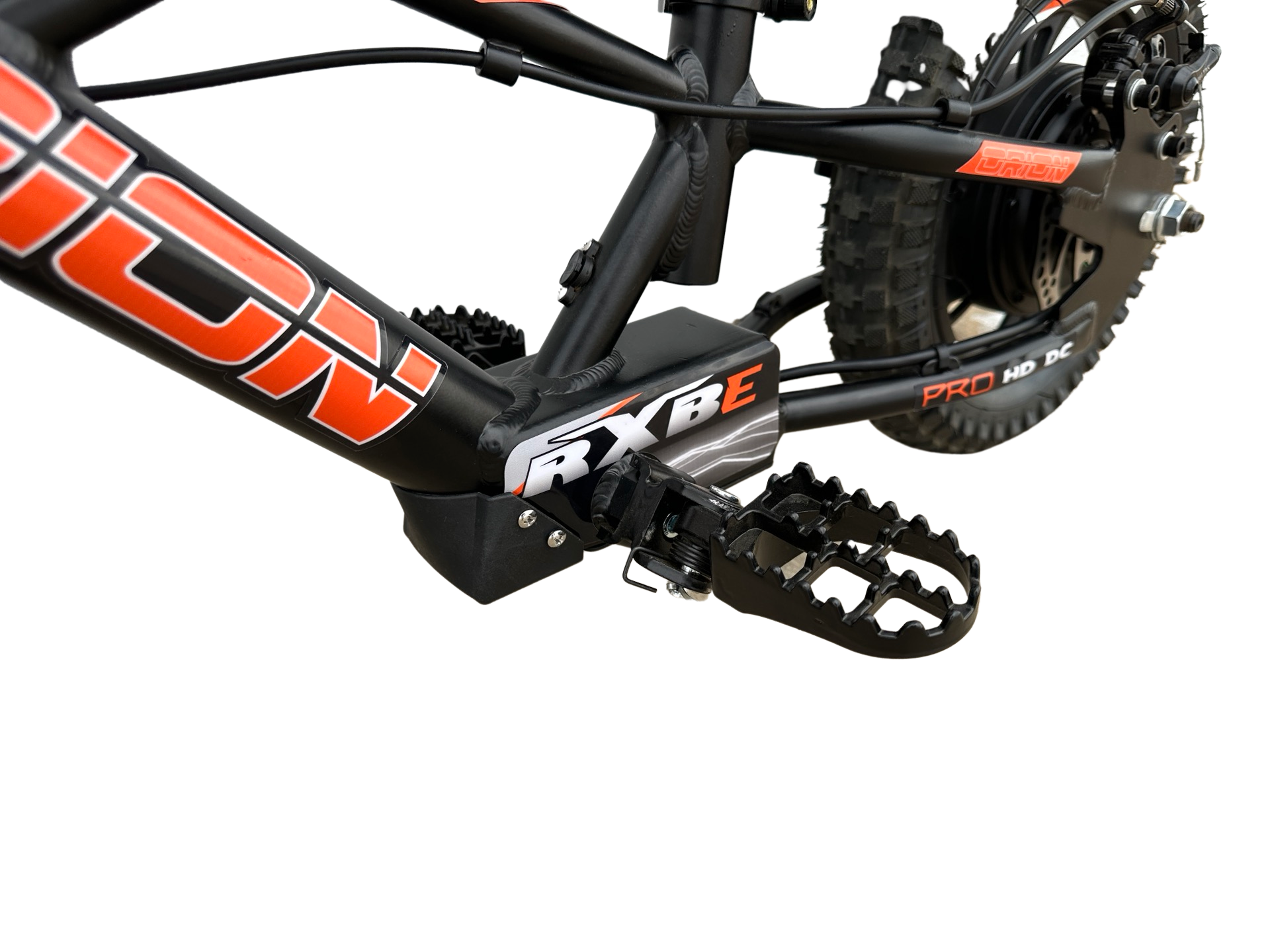

Foot Pegs: Beginner and MC Style Included

Brake: Rear disc

Seat: Adjustable

Max load: 165 lbs

Max running time: 3.5 hours

Max speed: 11 mph

Charge time: 2-4 hours

Start mode: kick or twist-n-go

Speed mode: 6 speed

Net weight: 24.3 lbs

Gross weight: 26.9 lbs

Our controller is programed for ALL ages and riding skill levels.

That means you only have to buy 1 bike that they can ride from beginner to pro racer.

Most controllers only put out 12-15A, have 3 MOSSFET transistors, zero safety features and 2 speeds. We went the extra mile and made our controllers with 6 larger, 20AMP MOSFET transistors. Yes it is over kill but we don’t have controllers blowing up or overheating. That equals happy child and happy parent.

We built in many safety features like:

KSM (Kick Start Mode) Bike must be pushed for the motor to engage. Disconnect the Red connector to take the bike out of KSM mode.

BCO (Brake switch Cut Out) Pull the brake lever and the motor cuts out. This feature can be disconnected for racing or doing wheelies.

TDR (Throttle Delay Reaction) 2 sec delay after the throttle is twisted so the bike does not take off to fast (speeds 1 and 2 only, speed 3 has zero delay)

50% power (all bikes are shipped with 50% power) disconnect the blk/wht wire for full power. 3 speed switch (6 different speeds-3 at 50% and 3 at full power). 16in bikes are shipped with 50% power and 1st speed- a slow trot.

Modes: KSM, 50% power, Race (100% power, 3rd speed, 20 AMP’s)

Motor power: 180W

Motor Type: Geared

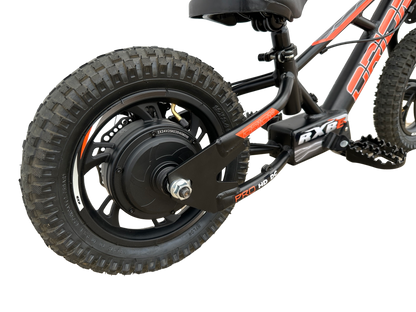

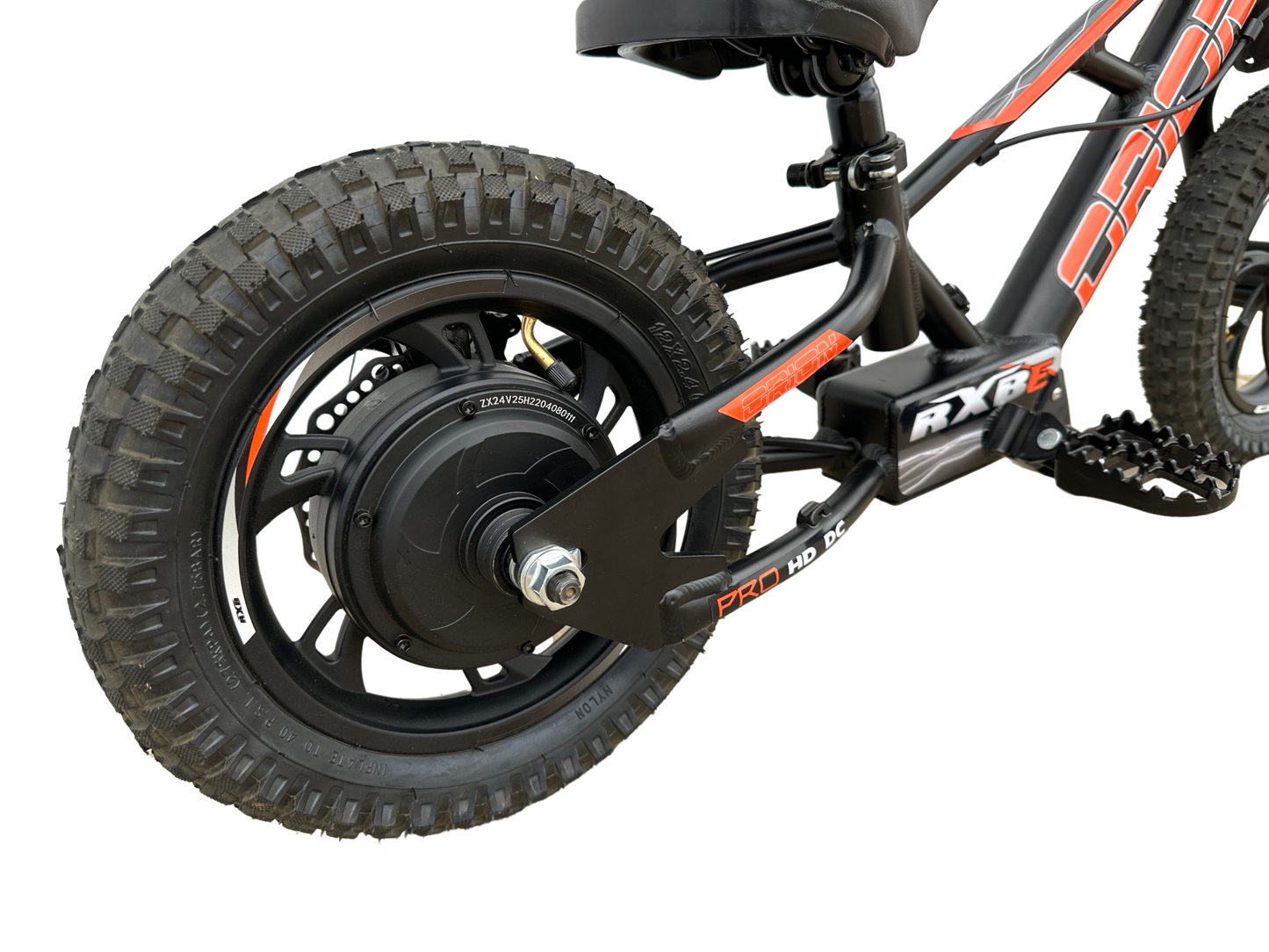

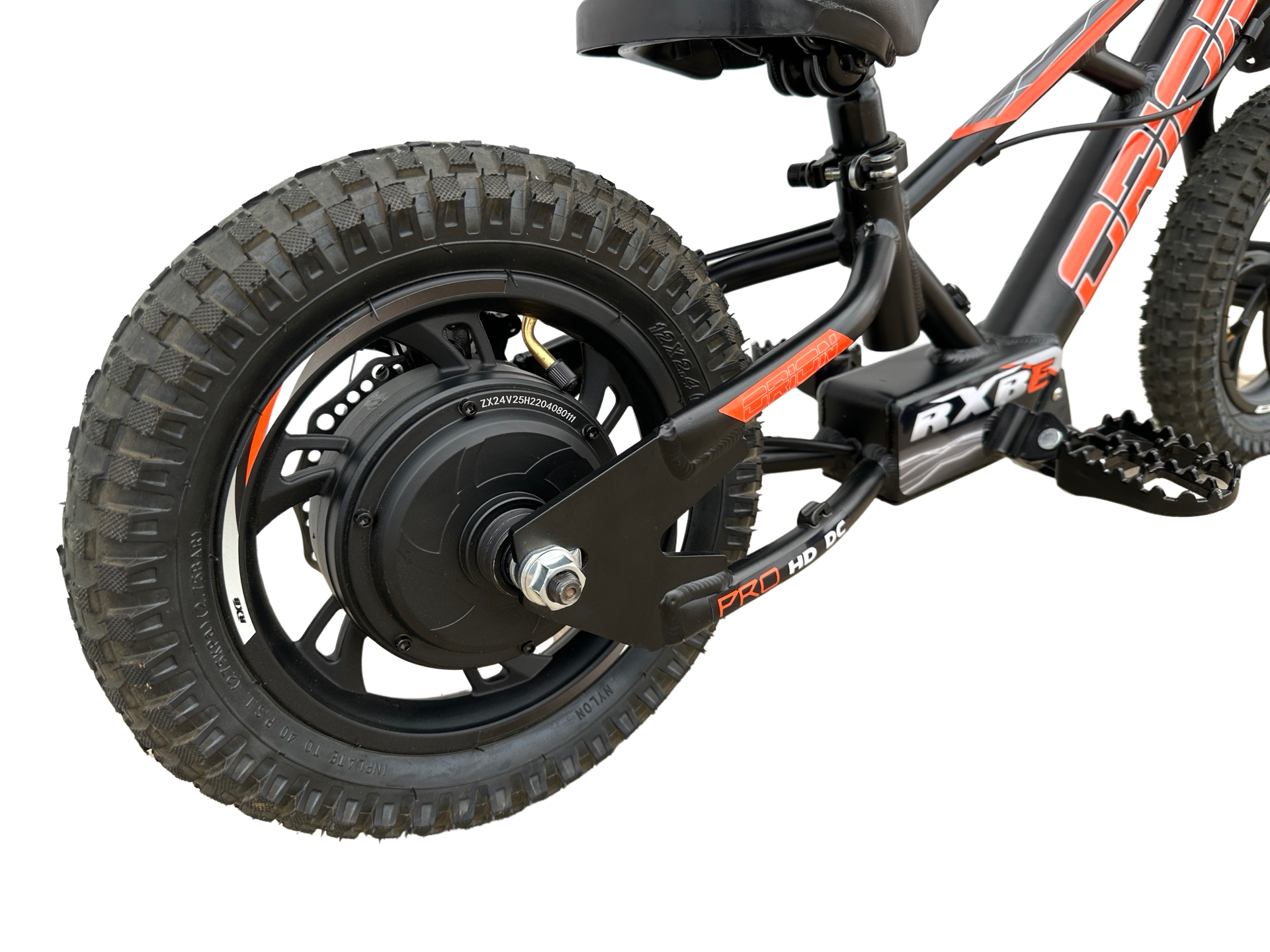

XRT electric balance bike hub motors are quieter and more efficient than other electric balance bikes. Battery life on the XRT moto bike is more than double competitive Electric balance bikes.

Our 12in has 180W NON-GEARED (Direct Drive) motor giving the bike a very smooth and linear acceleration. This is very important as you do not want the bike to suddenly take off and scare your child.

Wheel size: 12"

Wheel Type: Aluminum

Tire: Quality Knobby

Aluminum wheels are more durable and can handle more weight, higher jumps, and all around kid abuse. If you want a bike that will last for many years, choose the one with aluminum wheels.

Tires

No expense spared here. High quality dirt bike tires made with over 30% natural rubber. If you are doing 360’s, skids, burn-outs, racing, snow, mud, weeds or any other condition our tires can handle the abuse.

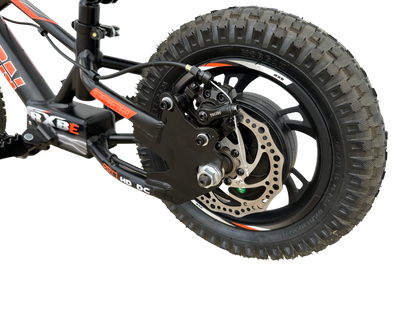

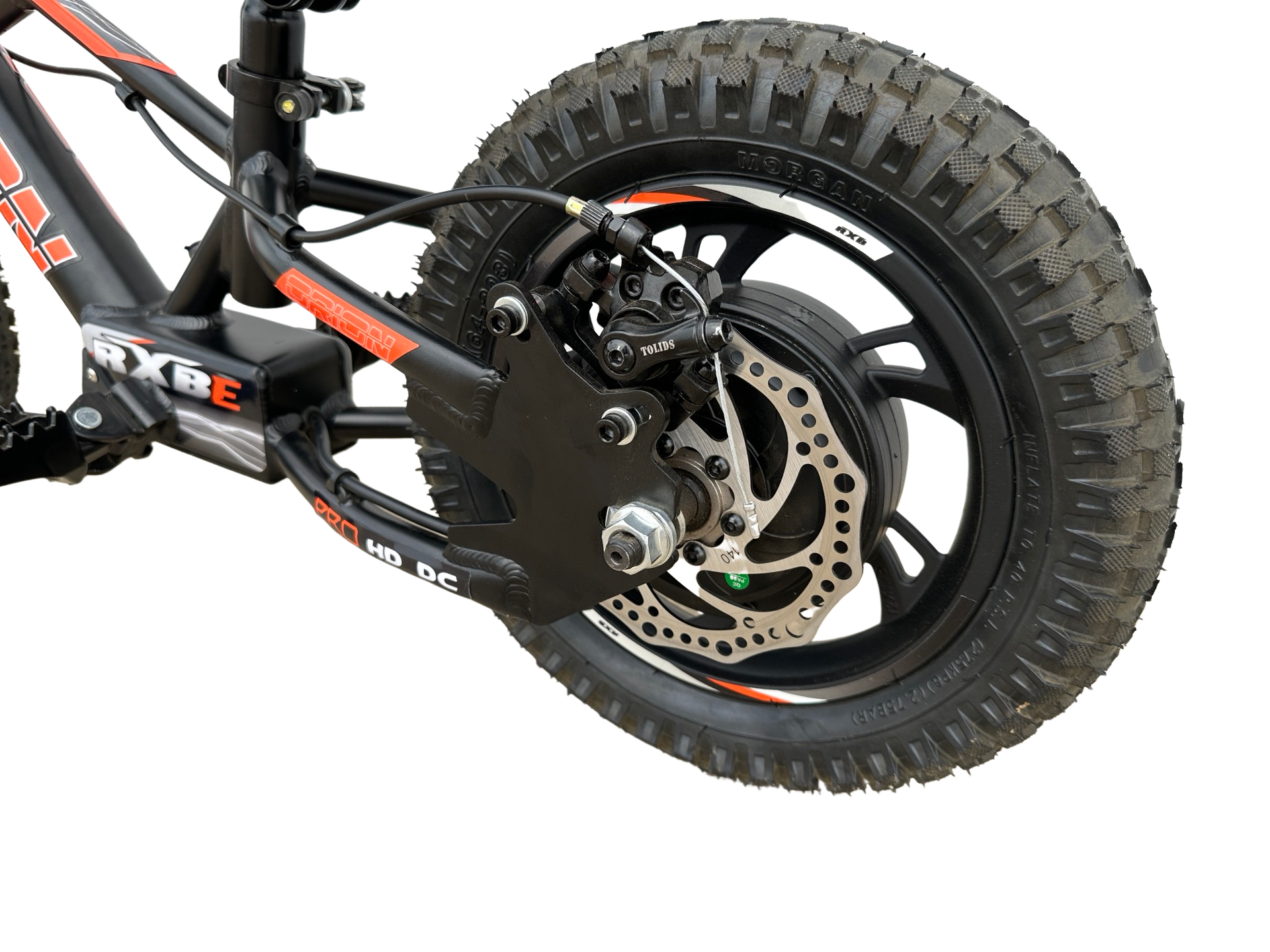

Disk Brakes

Disc brakes give you stronger stopping power, shorter stopping distance, better heat dissipation and better overall performance.

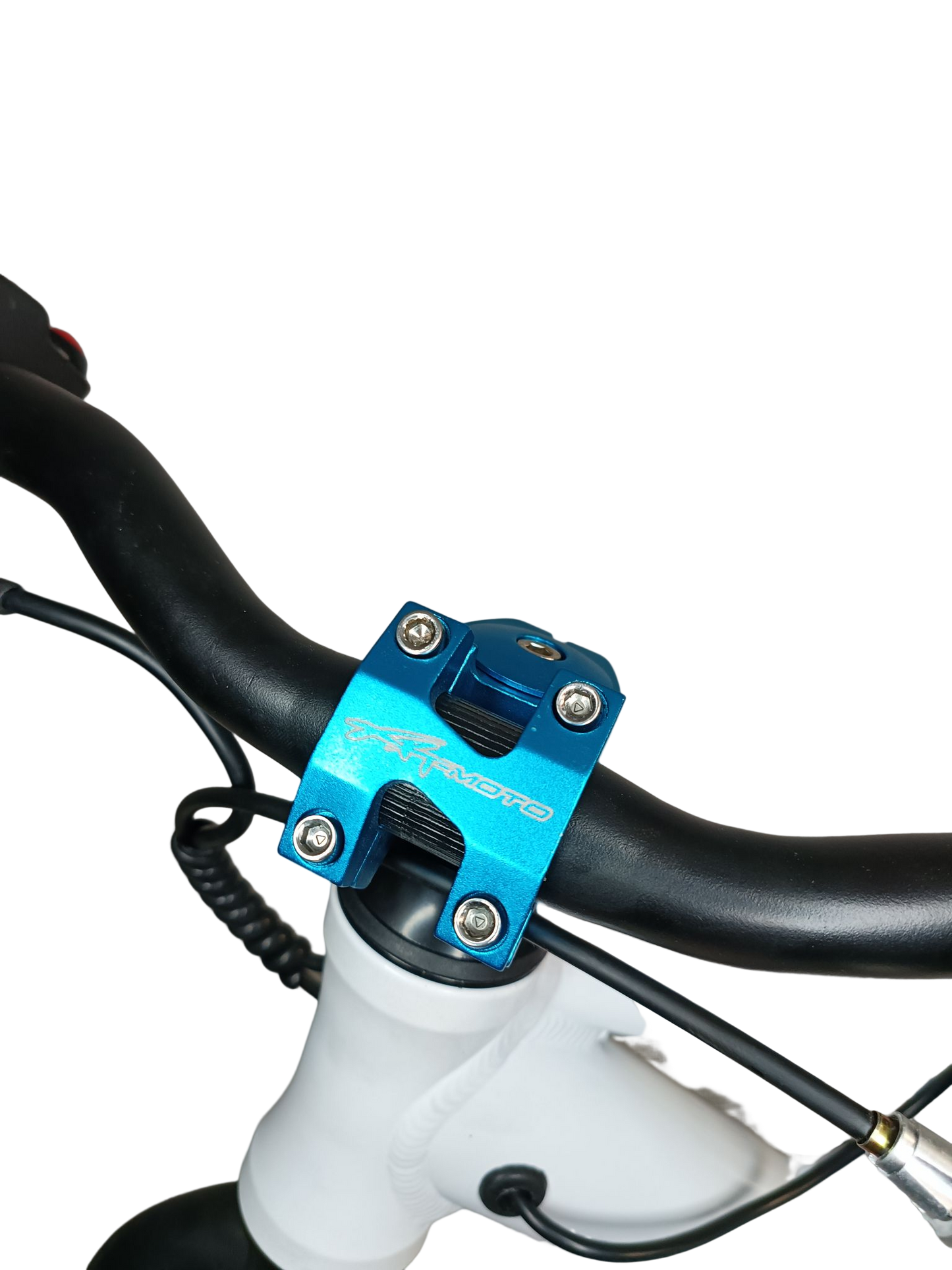

Standard features on all bikes are...5.2Ah battery, MC foot pegs, MC grips, Sealed handle bar stem bearings, CNC Black handle bar stems, Quick adjust seat levers, Kick Stand, disc brakes, 7 choices of colors. White, black, or orange frames...

*Bike frames may come in two variations, a straight frame or bent frame, which may slightly differ from the bike pictured. Graphics kits include frame stickers. Additional colored accessories for the stem, riser, and foot pegs will be available soon, these components come in standard black.

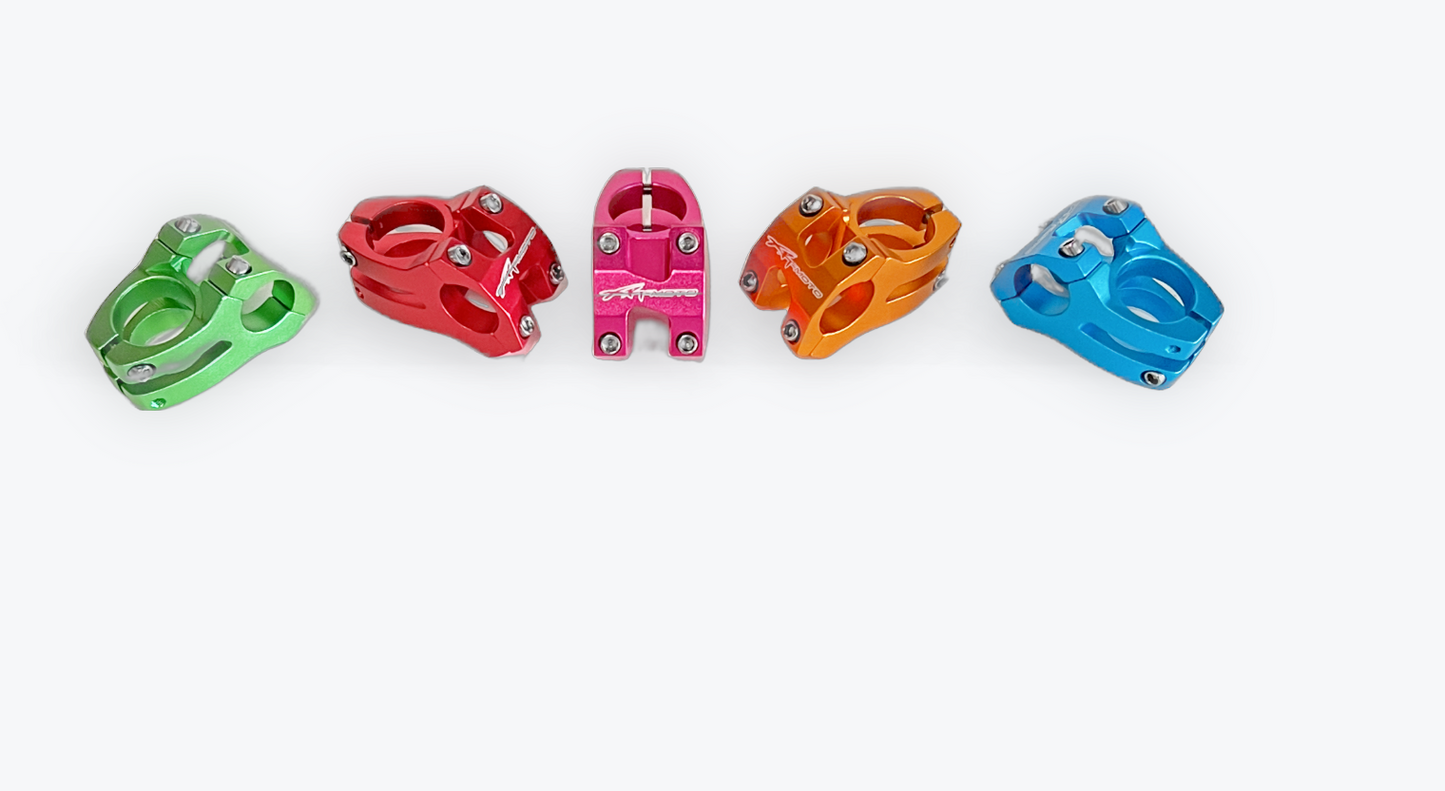

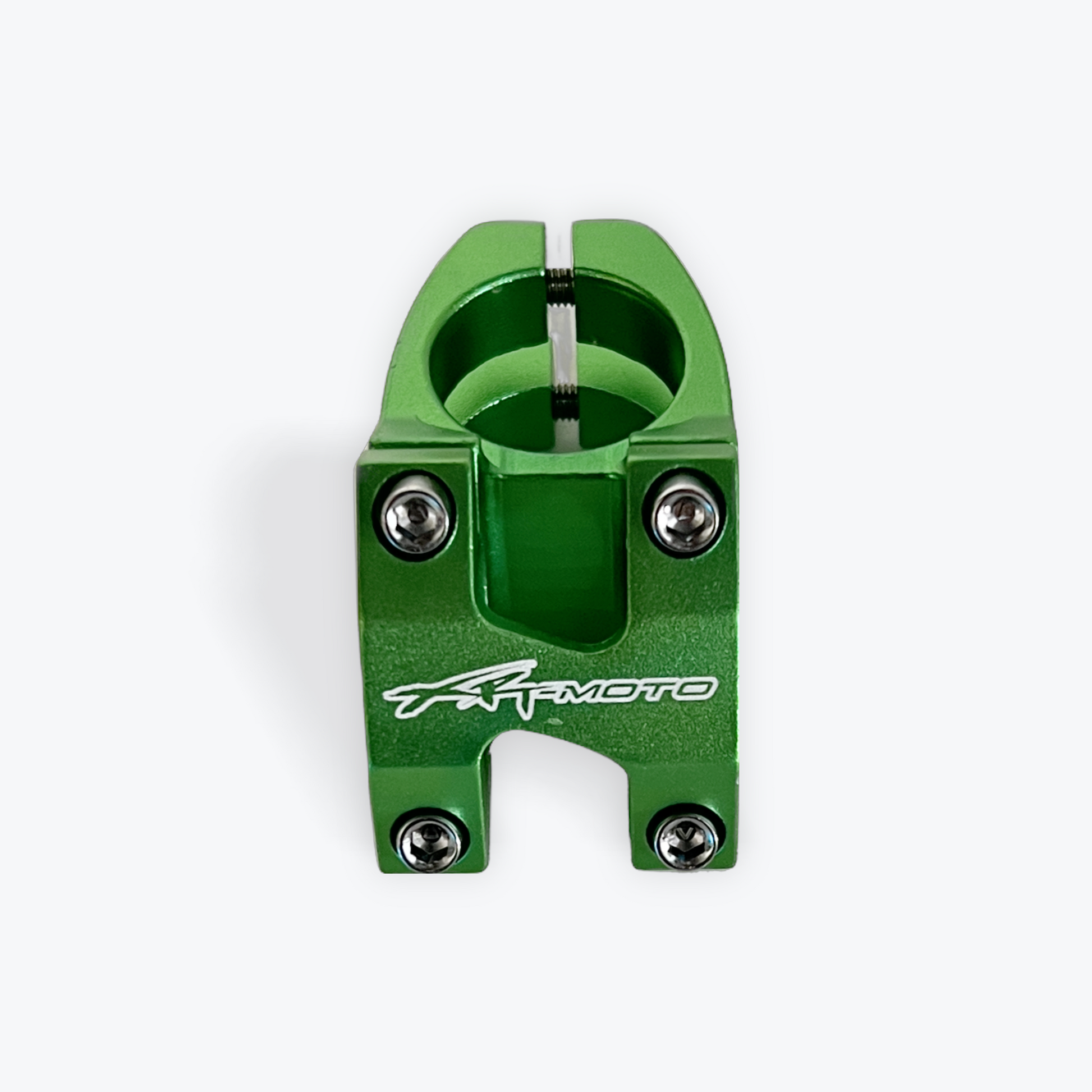

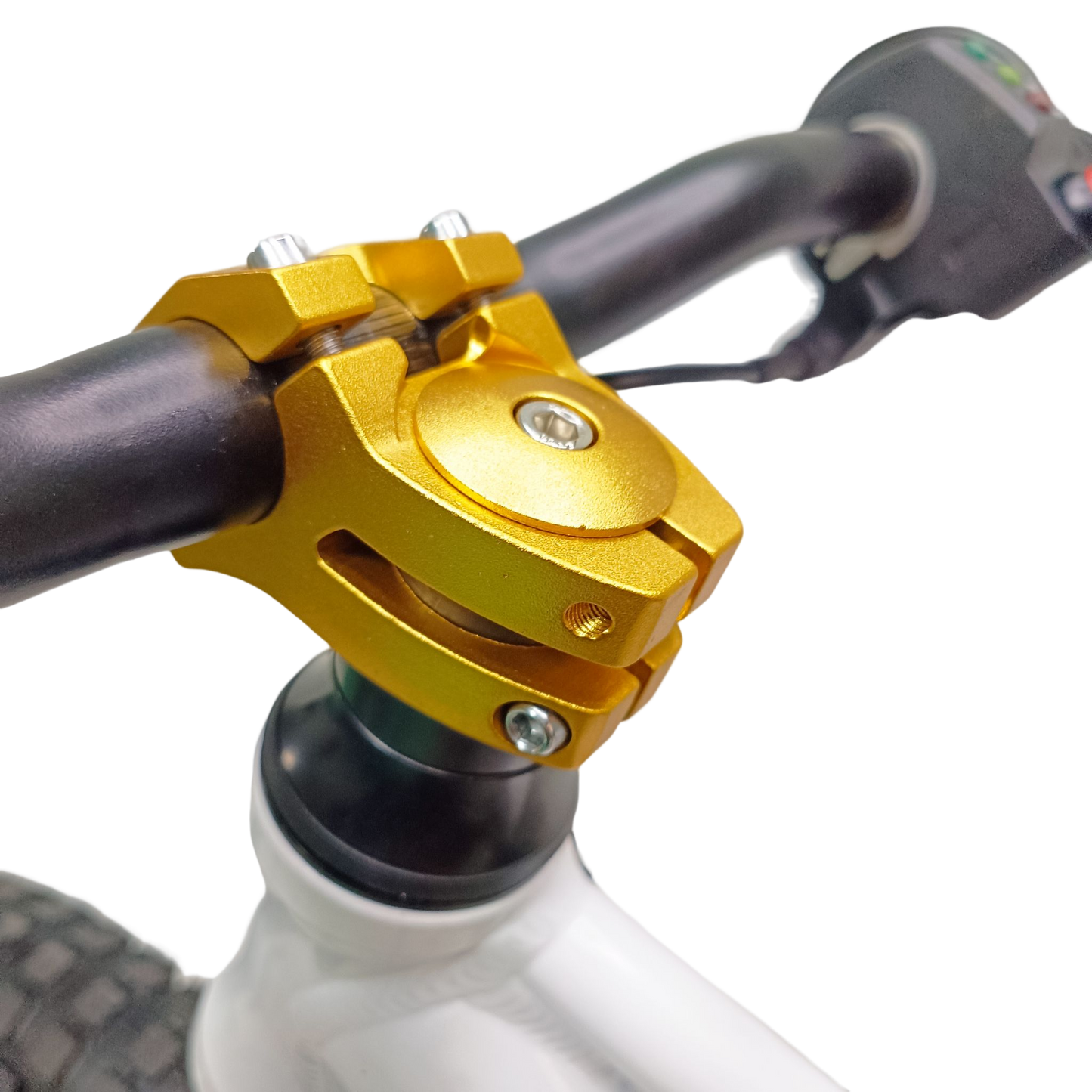

All bikes are fully up-gradable. You can add many BMX, Mountain bike, or Motorcycle parts such as Hydraulic brakes, aluminum brake levers, 160mm Aluminum brake disc, CNC stems, Motorcycle foot pegs, anodized aluminum bling parts, Carbon Fiber handle bars, Motorcycle grips (some pics are shown with a few of these features).

All 12in bikes can be up-graded to the 16in by simply changing the front wheel, forks and rear hub motor.

16in bikes can be up-graded to 36v by simply changing the battery.

Frames

High grade 6061 T6 Aluminum frames can withstand over 250lbs, high jumps, drops from 2 story buildings, eager parents who want to ride, and all around kid abuse.

Seats

All seats have a convenient grab handle to assist when training the child.
